Planogram Portal

created by




iDesign have developed a planogram app for Brands to set out and publish their product layout in the retail space. The simple process enables you to log onto an iDesign hosted web address and select through the menu your display and product range to planogram. The fully customisable platform enables display images to be rendered and used as a rear template and the product images are photographed in each option. A stock on hand tab has been included for client viewing. Once the planogram has been completed a pdf document can be published and emailed to appropriate stakeholders.



Australian Innovation Patent:  2018100011 AU

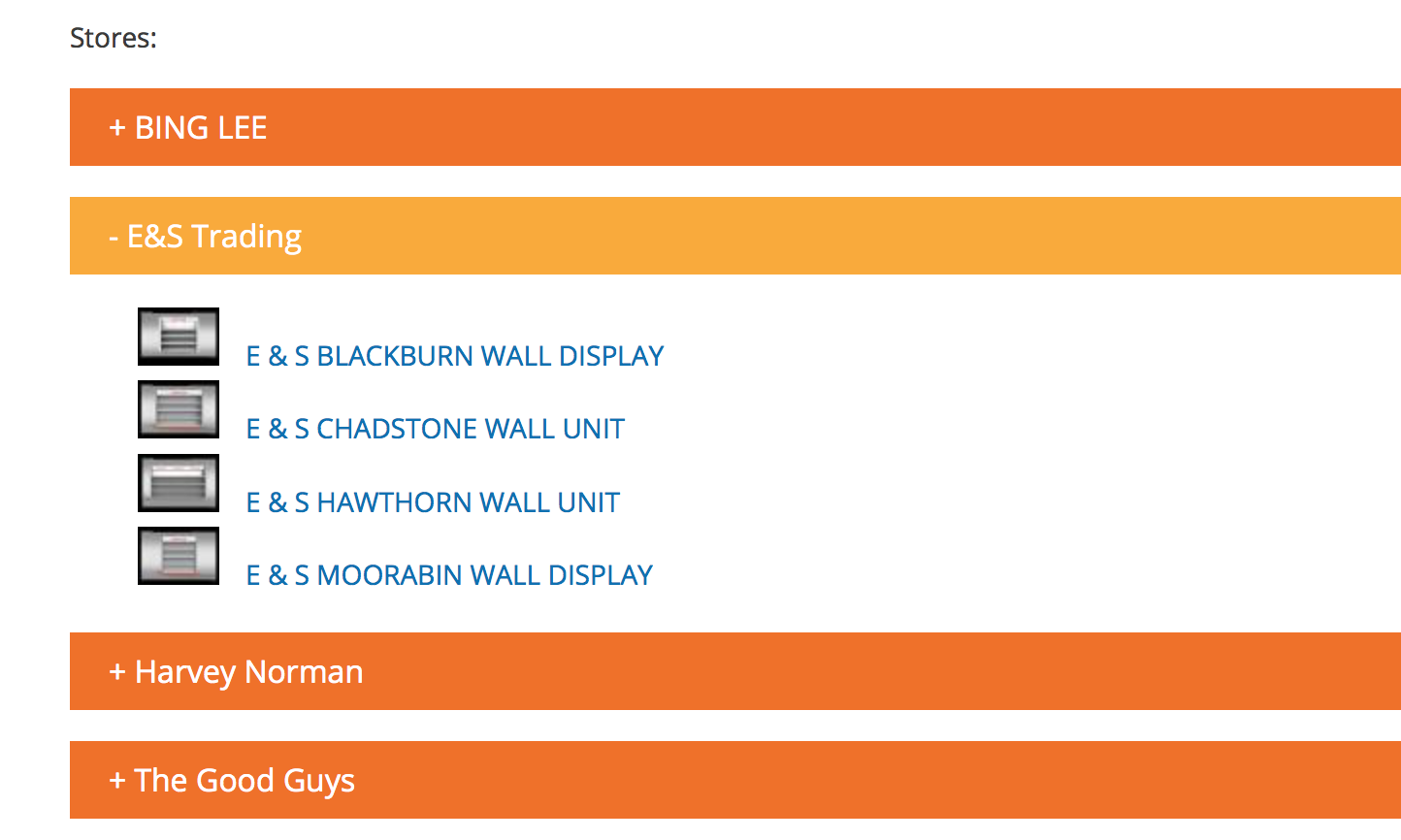

Screen Shot 2018-07-02 at 3.01.29 pm.png

YOUR ACTUAL DISPLAYS

We use our existing 3D files of your displays to create a library of all your store fixtures. Store specific and to-scale.

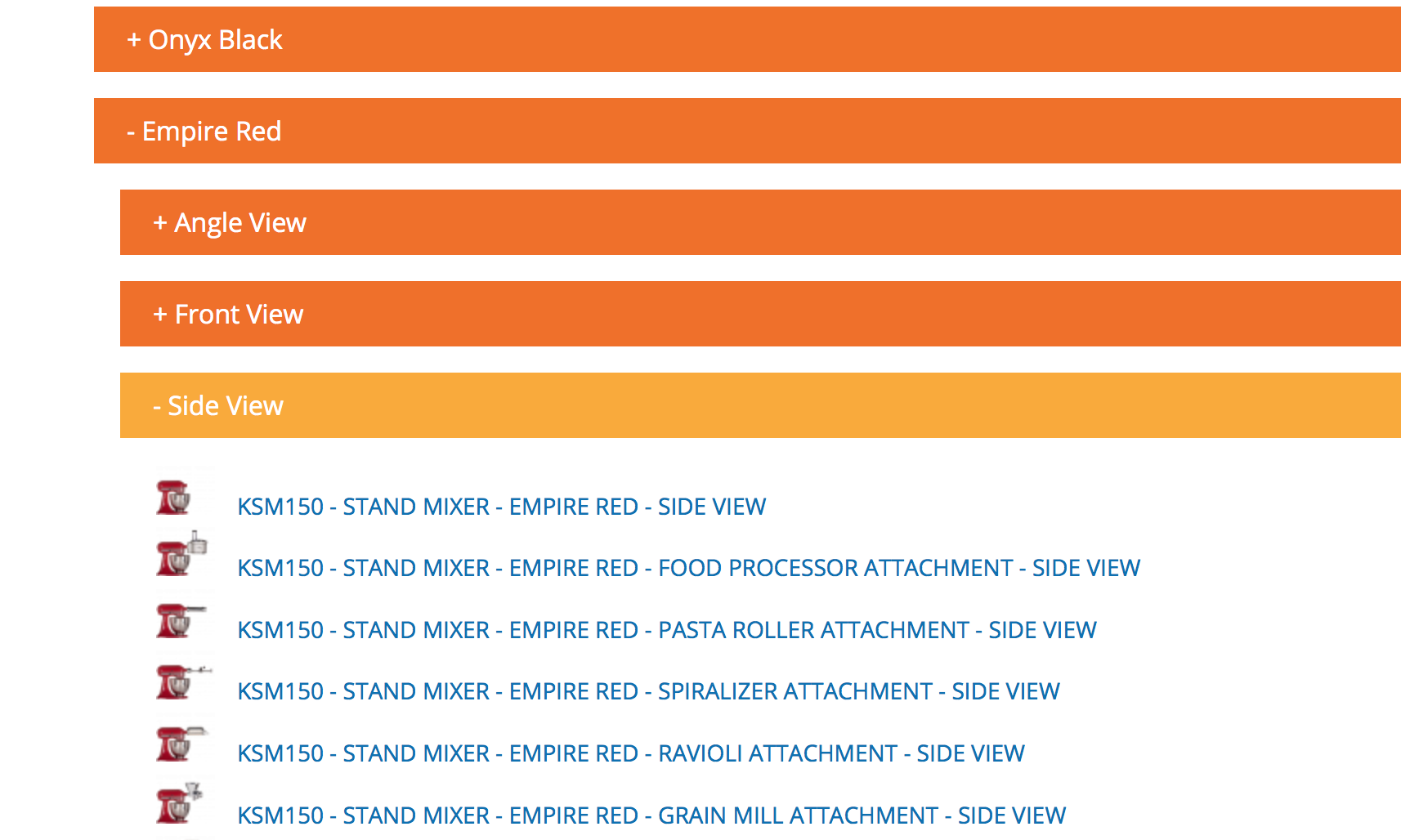

Screen Shot 2018-07-02 at 2.58.13 pm.png

EVERYTHINg TO SCALE

Based on the dimensions of your displays and your products we will then build a to-scale library of all your products, making sure everything is in proportion when you create your drag&drop planogram.

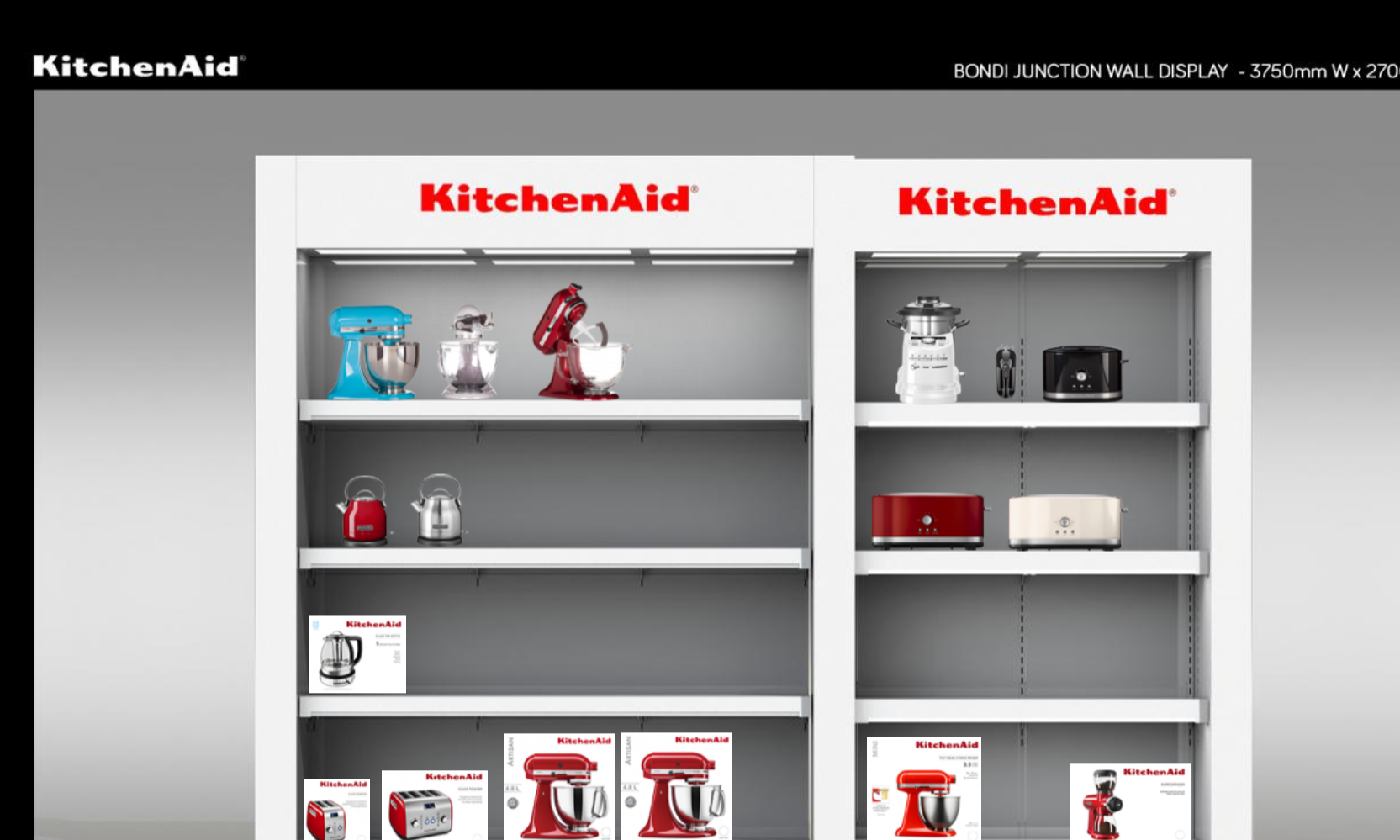

Screen Shot 2018-05-24 at 3.25.45 pm.png

ALL CLOUD BASED

 Once the planogram has been created the can be saved, shared, duplicated or edited whenever required.






Merchandise Anti Theft System



We designed MATS to provide reliable protection to high risk merchandise
by preventing sweeping from the shelf edge by “Professional Gang volume theft”.


Innovation Patent: 2017100031 AU ,  PCT/AU2018/000001,  USA Patent pending: 15/745099, Europe Patent pending: 16823552.1, Australia Patent pending: 2016293376



RETRO-FIT  The 304mm wide modular injection moulded unit is able to retrofit into any existing shelving areas.

RETRO-FIT

The 304mm wide modular injection moulded unit is able to retrofit into any existing shelving areas.

ADJUSTABLE WIDTH  The system is fully modular and comes in widths of 1, 2, 3 and 4 foot wide. Custom widths are possible on request.

ADJUSTABLE WIDTH

The system is fully modular and comes in widths of 1, 2, 3 and 4 foot wide.
Custom widths are possible on request.


OVERLAY SHELF  The MATS system can fit on most existing shelves or can be installed with our own exclusive "All-in-One" shelf

OVERLAY SHELF

The MATS system can fit on most existing shelves or can be installed with our own exclusive "All-in-One" shelf

INSTALLATION READY  The MATS system comes pre-assembled, ready for installation.

INSTALLATION READY

The MATS system comes pre-assembled, ready for installation.


LED LIGHTING  A built in LED across the front of the top cover puts your products into the best possible light.

LED LIGHTING

A built in LED across the front of the top cover puts your products into the best possible light.

IT ALL DEPENDS ON THE RIGHT ANGLE  Our versatile bracket system fits most existing store fixtures and allows for 2 different shelf angles.

IT ALL DEPENDS ON THE RIGHT ANGLE

Our versatile bracket system fits most existing store fixtures and allows for 2 different shelf angles.


WEIGHTED CADDIES  Pushing your merchandise forward for a perfect presentation. Always.

WEIGHTED CADDIES

Pushing your merchandise forward for a perfect presentation. Always.

FULLY CUSTOMISABLE  With 4 different height options, 2 sizes of caddies, 4 different lead weights, adjustable dividers and front risers the MATS system is truely FULLY customisable.

FULLY CUSTOMISABLE

With 4 different height options, 2 sizes of caddies, 4 different lead weights, adjustable dividers and front risers the MATS system is truely FULLY customisable.

LARGE + SMALL CADDIES  2 widths and 2 different heights of pusher panels

LARGE + SMALL CADDIES

2 widths and 2 different heights of pusher panels

OUT OF STOCK GRAPHIC  A clear graphic sleeve allows for communication even when temporary out of stocks occur.

OUT OF STOCK GRAPHIC

A clear graphic sleeve allows for communication even when temporary out of stocks occur.


PUSH IT BABY  If theft is not your issue (lucky you) but you really like our push system, then we can help with that too. The MATS overlay shelf.

PUSH IT BABY

If theft is not your issue (lucky you) but you really like our push system, then we can help with that too. The MATS overlay shelf.

PROP IT UP  And if your existing shelving is horizontal, we can also sort you out with our "Prop-Up"-kit.

PROP IT UP

And if your existing shelving is horizontal, we can also sort you out with our "Prop-Up"-kit.


RESULTS  based on a  25 store analysis:

Loss decrease 32.60% (Analysed over 12 weeks stocktake to stocktake)
This decrease is predominantly from sweeping protection
Sales increase 11.20% based on shelf availability increasing by 56.00% with sweeping reductions
Profit increase 18.44% over 12 week analysis



If this got you interested do contact us today: info@idesigngroup.com.au








The Pixalux® light panel is an Australian lighting innovation for architectural, corporate, exhibition and retail design.
The remarkable benefit of the Pixalux® light panel is that it can become part of the structural joinery and incorporate lighting to create elegant retail and commercial projects.

Australian Patent No is 2010228117 | The WIPO No is WO10/108222 with Patents pending in China, USA, EU, Malaysia,  Thailand, HK, Singapore, Canada, Brazil, Japan and Korea.




SHADOW FREE

The Pixalux® panels can release light from one or both sides, and the surfaces are cool.  Pixalux® light panels are ideal for illuminating cosmetics, perfumes, heat sensitive foods and other products.

Graphics can be applied directly to the surfaces of a Pixalux® light panel and it can also be laser cut into shapes for special effect displays.


EVEN LIGHT

 Being LED edge lit the Pixalux® panels can be supplied with fixed colour temperature , adjustable colour temperature, or full colour illumination and all panels can be dimmed or electronically controlled by individual or integrated lighting control systems.


SLIM DESIGN

 Standard panel thickness is 14 or 16mm, and maximum panel sizes are currently 400mm by 2000mm for single edge illumination panels, and 800mm by 1200mm for dual edge illuminated panels.  A variety of panel sizes are available within these limits.



VIRTUAL REALITY




Do flat 3D renders and animations not quite cut it...? Do you need something extra to get your design pitch over the line? iDesignGROUP have the in house capability to produce immersive VR (Virtual Reality) POS and shop fitting solutions for our clients. Once the initial design is created our VR team can transfer the 3d model into a virtual space, which enables the user to experience their product or store design through the use of a specialised VR headset and motion tracking system. Like on digital gaming platforms you can move around the virtual world interacting with realistic elements like shelves or products. This innovative technology will enable your brand to present your product giving a sense of space, and ergonomics which just isn't possible from a plain visual.



CONTACT us for how we can help you expand your design options

email: info@idesigngroup.com.au



designer screen.jpg

DESIGN

We are industrial designers first and foremost, so when we work with you to design your next display or shop we will create these concepts in a 3D CAD system.

VR cad designer.jpg

CREATE

Our VR team at iDesign will then take your design concepts and bring them to life in a 3 dimensional store environment allowing  you to fully engage with the objects in a realistic kind of way.




IMMERSE

This is an ideal tool to show off the functionality of a display or the different elements of an in-store environment.
Like in modern computer games you can move around a virtual world interacting with realistic elements to experience a real sense of space, and ergonomics.
